This internal tab is located on the Bridge Data Maintenance interface on the Bridge tab.
Query Tab

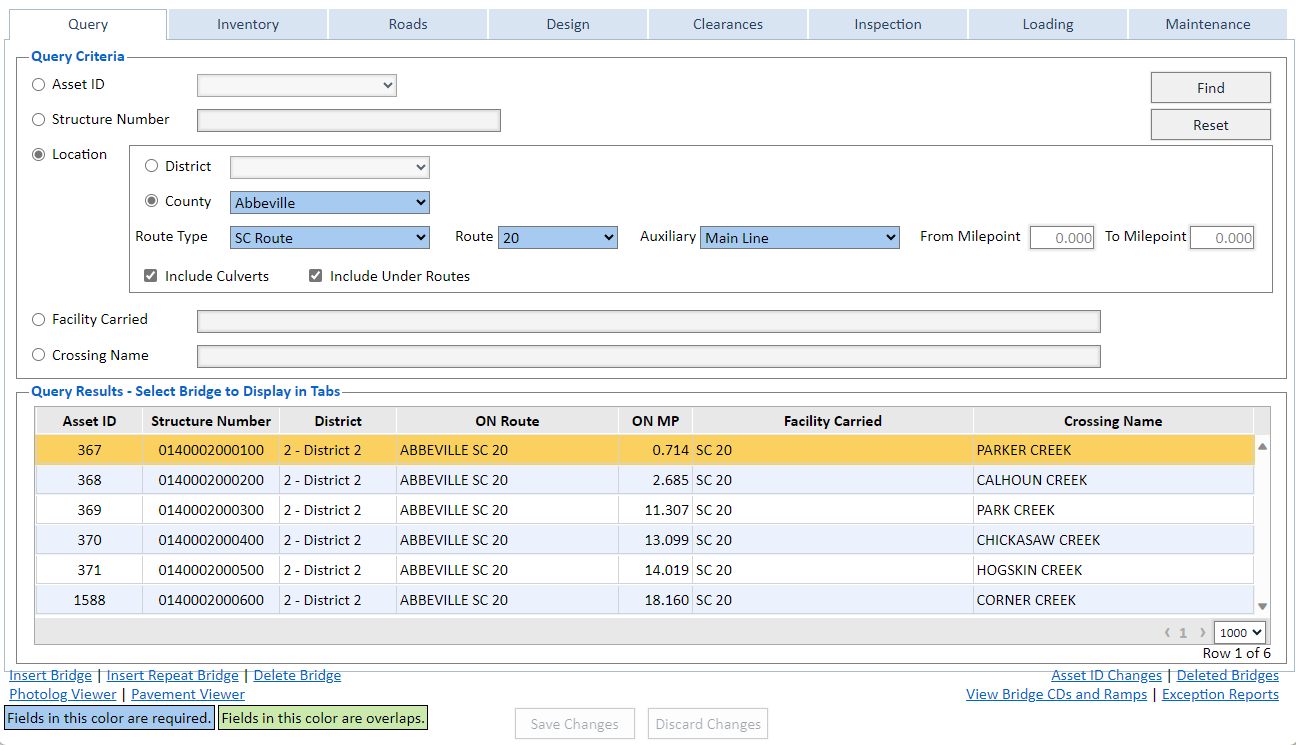

In order to use the Bridge Data Maintenance interface, the user must fill the desired fields in the Query internal tab, the first tab on the user's screen. This tab allows the user to search for the desired bridges using filters. It will also fill the remainder of the interface and enable the tabs.
Query Fields
The user is able to query for one or more bridges by Asset ID, Structure Number, Location, Facility Carried, or Crossing Name. Each of these query options have their own radio buttons and associated fields.
| Field Name & Type | Associated Radio Button | Used To... |
| Asset ID Radio Button | - | Query for a single bridge by its Asset ID. |
| Asset ID Dropdown | Asset ID | Show all Asset IDs associated with active bridges in the RIMS bridge table. |
| Structure Number Radio Button | - | Query for one or more bridges based on Structure Number. |
| Structure Number Dropdown | Structure Number | Enter a full or partial structure number; this performs a wildcard search to return all bridges whose Structure Number contains the value specified. |
| Location Radio Button | - | Query for bridges based on the entered location information; return all bridges based on the bridge On Route and Under Route locations and return bridges where the query route is subordinate. |
| District Dropdown | Location | Query for a bridge based on district by selecting from a list of districts in the state. |
| County Dropdown | Location | Query for a bridge based on county by selecting from a list of counties in the state. |
| Route Type Dropdown | Location | Choose the route type from a list of all route types in the selected District/County. |
| Route Dropdown | Location | Choose the route number from a list of all route numbers in the selected District/County with the selected Route Type. |
| Auxiliary Dropdown | Location | Choose the route auxiliary from a list of all route auxiliaries for routes in the selected District/County with the selected Route Type and Route Number. |
| To/From Milepoint Textbox | Location | Specify a mile point range on the specified route for bridge locations to be returned. |
| Include Culverts Checkbox | Location | Include culverts along the query location; checked by default. |
| Include Under Routes Checkbox | Location | Compare the location criteria fields against both On Route and Under Route locations when executing a search query; if unchecked, the comparison will only be against On Route locations. |
| Facility Carried Radio Button | - | Query for bridges based on the facility carried on the bridge. |
| Facility Carried Textbox | Facility Carried | Enter a value to perform a wildcard search that returns all bridges whose Facility value contains the specified text. |
| Crossing Name Radio Button | - | Query for bridges based on what bridges cross over. |
| Crossing Name Textbox | Crossing Name |
Enter a value to perform a wildcard search that returns all bridges whose Crossing Name value contains the specified text. |
Button Controls
There are also two button controls that activate or reverse the query field selections:
| Control | Used To... |
| Find Button | Populate the interface with the bridges meeting the user specified query criteria. |
| Reset Button | Remove the current selections and revert the interface to its default state. |
Run Query
To successfully run a query, the user must follow these steps:
- Select a radio button (Asset ID, Structure Number, Location, Facility Carried, or Crossing Name).
- Fill its associated fields.
- Click the "Find" button.
"Find" Function
When a query is executed using the "Find" button, the following processing steps are taken:
- The entered query criteria are validated to verify all required fields contain values.
- The list of matching bridge records is shown in the query results table, sorted using these rules:
- If a Structure Number query was performed, the results are sorted by Structure Number.
- If a Location query was performed, the results are sorted by the ascending mile point location for the query route.
- If a Facility Carried or Crossing Name query was performed, the results are sorted by ascending Asset ID numbers.
- If the query results contain any bridge ramps, special logic is executed for each bridge ramp to verify traffic data exists for the ramps.
- All bridges in the query results will be displayed on the Inventory Manager map as points. The Asset ID, Structure Number, Structure Name, On Route and Milepoint, Direction, Facility Carried, and Crossing Name will be displayed in a hover textbox when the user hovers over a mapped point.
- The first bridge record in the Query Results table will be selected and the bridge will be displayed in the other tabs. The user can navigate to another bridge if desired by clicking on that bridge’s row in the query results table.
- When a bridge is selected and displayed in the tabs, the system will automatically update fields values based on values stored in the Road Inventory data tables.
- The User Metrics counter for Bridge Data Maintenance will be incremented for the current user.
