These internal tabs are located on the Bridge Data Maintenance interface on the Bridge tab.

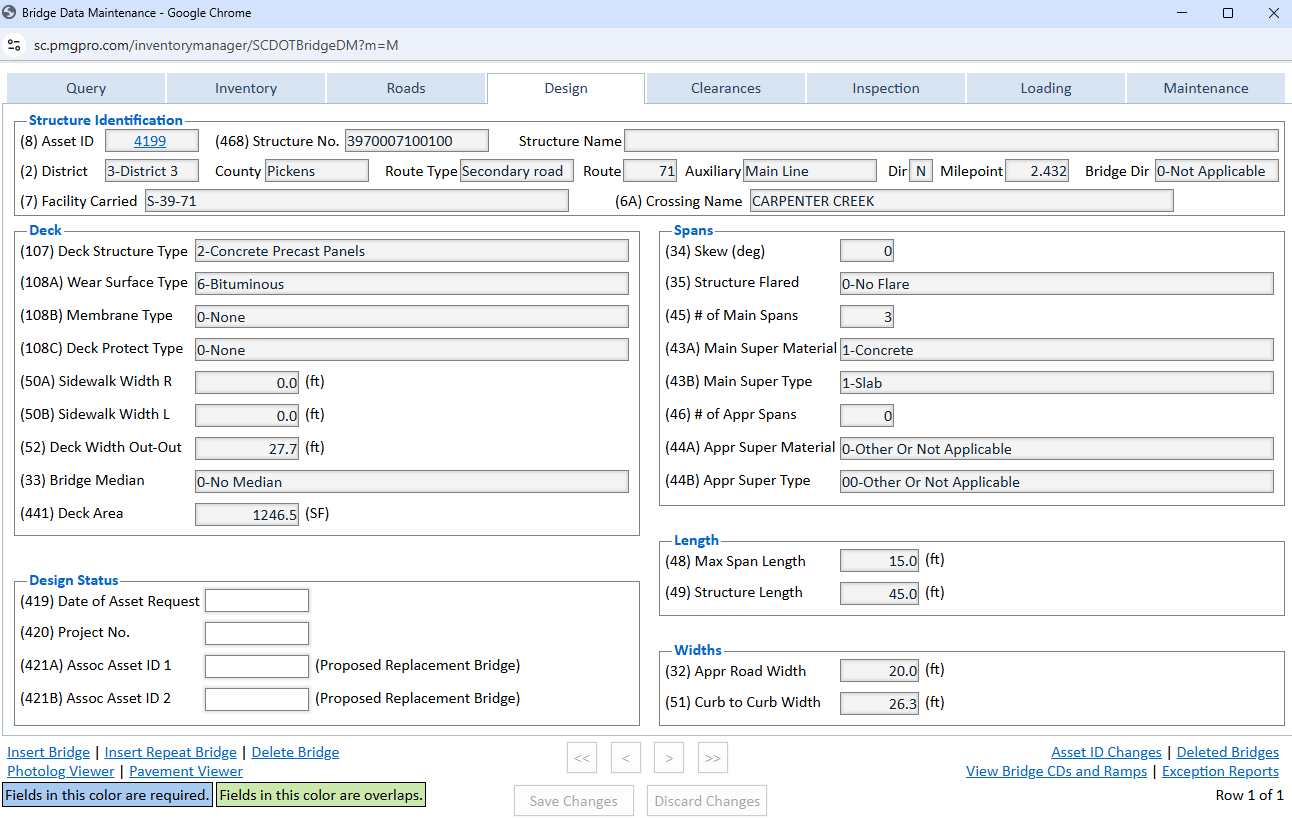

Design Tab

The Design Tab allows the user to view Deck, Design Status, Spans, Lengths, and Widths fields. The Design Status section is the only section that is enabled for user edits; the other four sections are view-only.

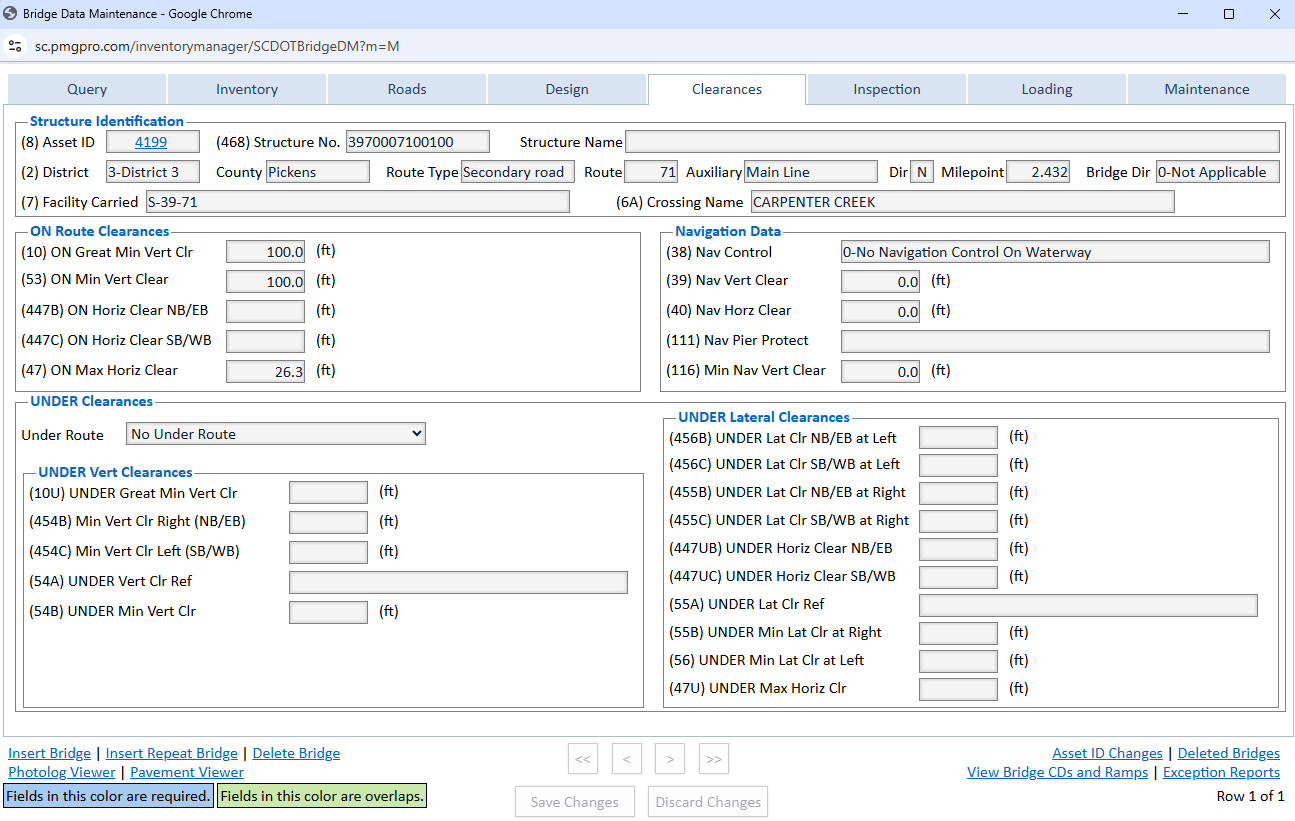

Clearances Tab

The Clearances Tab allows the user to view the ON Route Clearances, UNDER Clearances, UNDER Vert Clearances, Navigation Data, and UNDER Lateral Clearances fields. All fields are view-only on this tab.

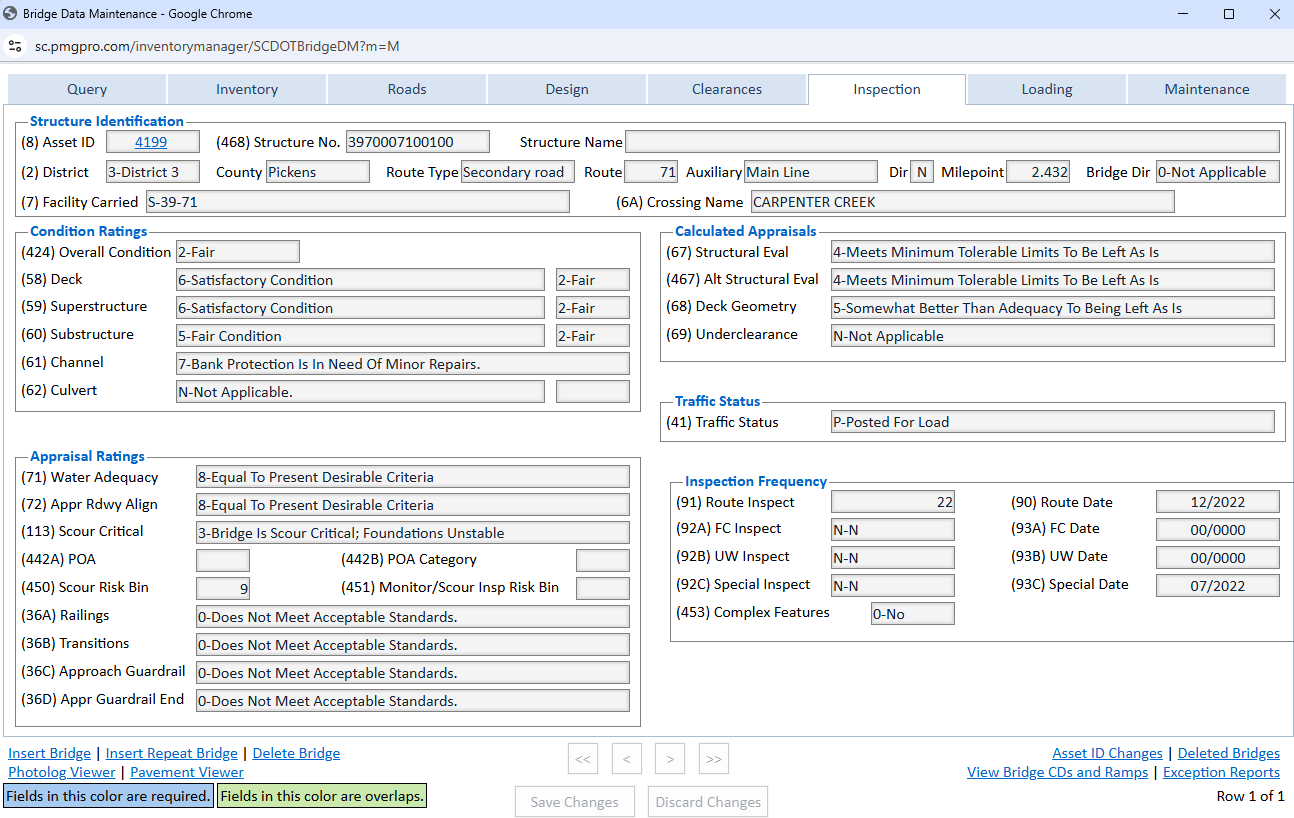

Inspection Tab

The Inspection Tab allows the user to view the Condition Ratings, Appraisal Ratings, Calculated Appraisals, Traffic Status, and Inspection Frequency fields. All fields are view-only on this tab.

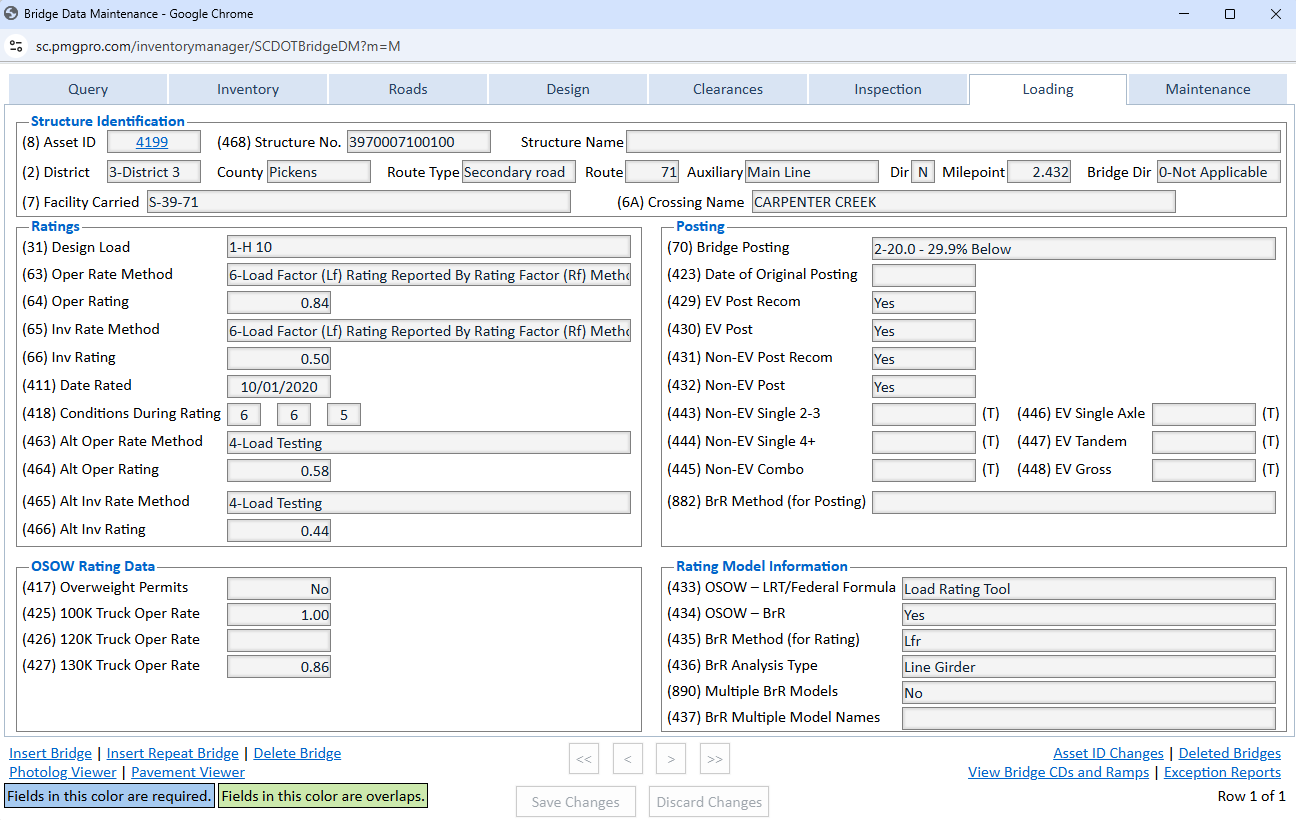

Loading Tab

The Loading Tab allows the user to view the Ratings, OSOW Rating Data, Posting, and Rating Model Information fields. All fields are view-only on this tab.

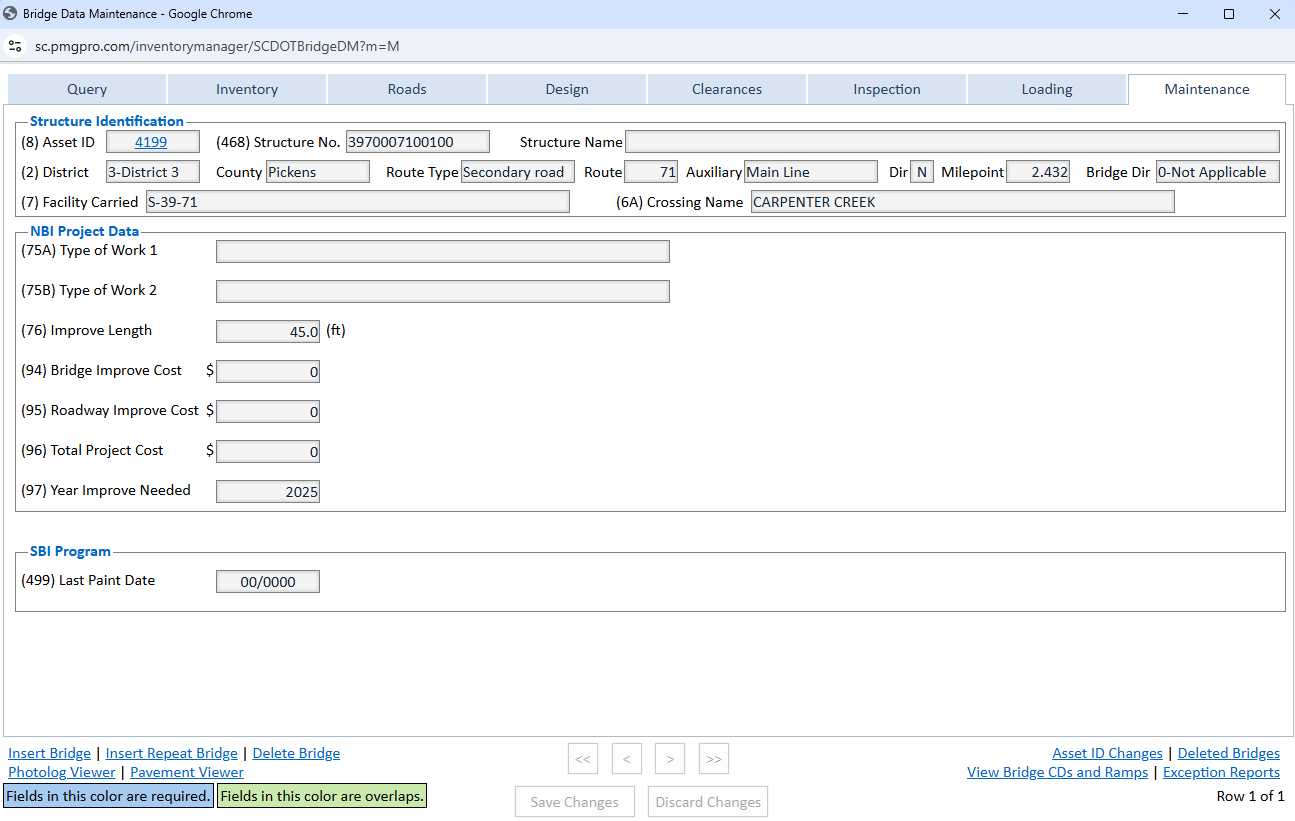

Maintenance Tab

The Maintenance Tab allows the user to view the NBI Project Data and SBI Program fields. All fields are view-only on this tab.

Save Changes

If the user edits or fills any fields in Design tab, they must click the "Save Changes" button before exiting the interface. Any changes that are not saved before exiting will be discarded.
