This tool is located on the RIMS section of the Road tab.
Function
The Route Modification interface () allows a user to define a series of route mod transactions to be performed within a route mod session.
Layout & Actions

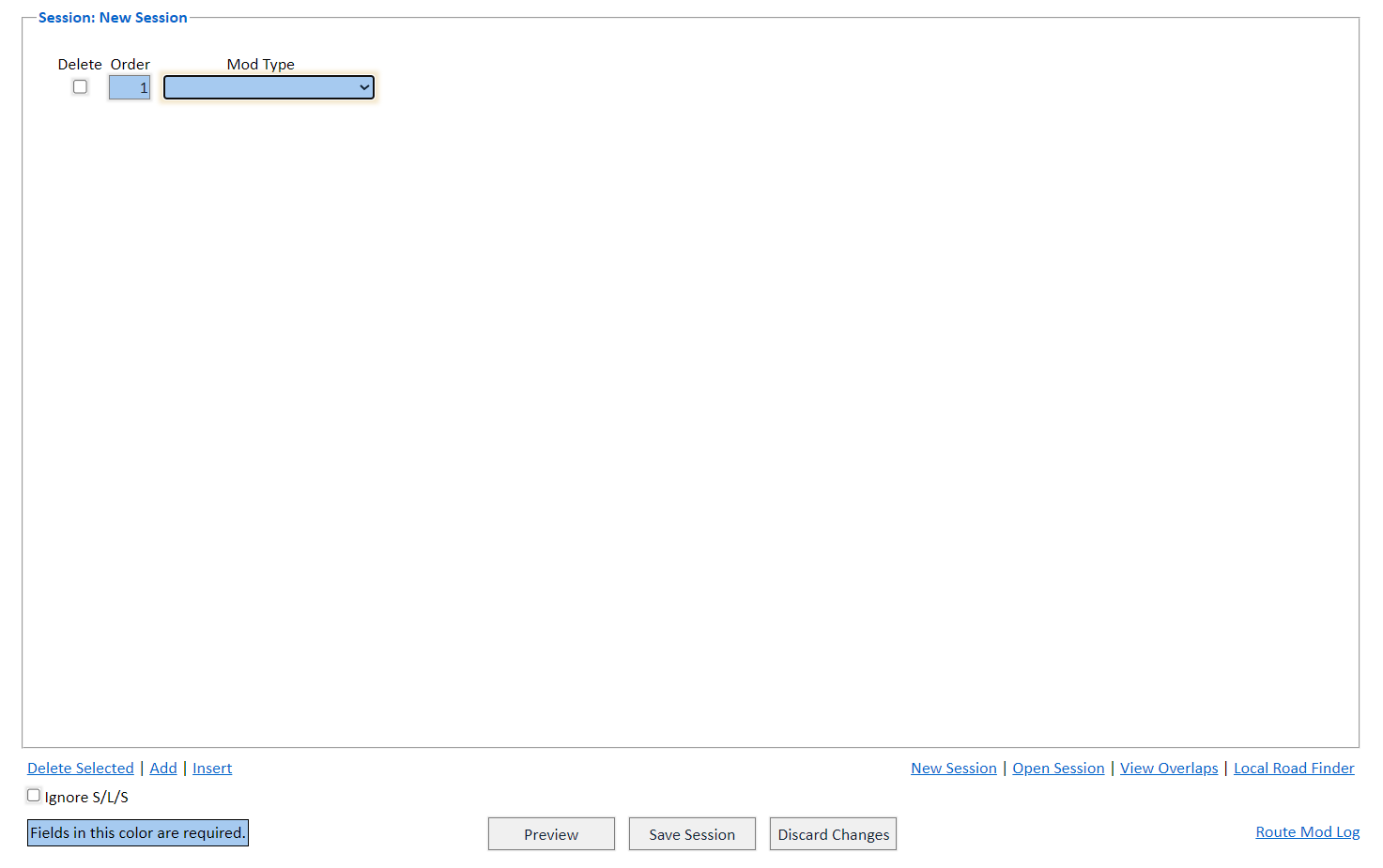

Upon entry into the Route Modification interface, the user will be presented with a single empty transaction row. The user may choose to perform one of these two actions:
- Fill the transaction rows -- Start defining the transactions for a new session.
- "Open Session" -- Click the link to open an existing session.
Controls
There are some static controls offered in the Route Modification interface.
| Control | Used To... |
| Delete Checkbox/Delete Selected Link | Delete one or more transactions by selecting a row checkbox, then the link. |
| Order Field | Specify the order in which the transactions should be processed when the Preview button is selected; automatically filled but can be edited. |
| Mod Type Field/Dropdown | Select the modification type for the row. |
| Add Link | Add a new empty transaction row. |
| Insert Link | Insert a new empty transaction row above the currently selected transaction row. |
| Ignore S/L/S Checkbox | Include S/L/S data in the output. |
| New Session Link | Reset the interface to start defining a new session. |
| Open Session Link | Open a route mod session that was previously created. |
| View Overlaps Link | View the current overlaps for a route. |
| Local Road Finder Link | View a list of existing local routes in a specified county. |
| Preview Button | Display the results of applying the defined route mod session transactions in the Route Mod Preview interface. |
| Save Session Button | Save the current session definition to the database. |
| Discard Changes Button | Discard all changes made to the current session and revert the interface's display to its previous state. |
| Route Mod Log Link | Select a date range to show a listing of related Route Mod Log entries in a pop-up. |
Related Articles
The Route Modification interface contains many intricate elements and pop-ups. The list below details the articles dedicated to the important elements/pop-ups in the Route Modification interface.
- Modification Types -- Outlines the various modification types on this interface.
- New Session -- Outlines the "New Session" link.
- Open Session -- Outlines the "Open Session" link.
- View Overlaps -- Outlines the "View Overlaps" link.
- Local Road Finder -- Outlines the "Local Road Finder" link.
- Preview -- Outlines the "Preview" button control.
- Save Session -- Outlines the "Save Session" button control.
- Route Mod Log -- Outlines the "Route Mod Log" link.
Bind RIMS Attributes to Intersections
Within Inventory Manager, users are allowed to selectively update data in RIMS LRS tables for a route when the mile point of one or more intersections on the route have been modified. For more information on binding RIMS attributes to intersections, the user can visit this article: Bind RIMS Attributes to Intersections.
